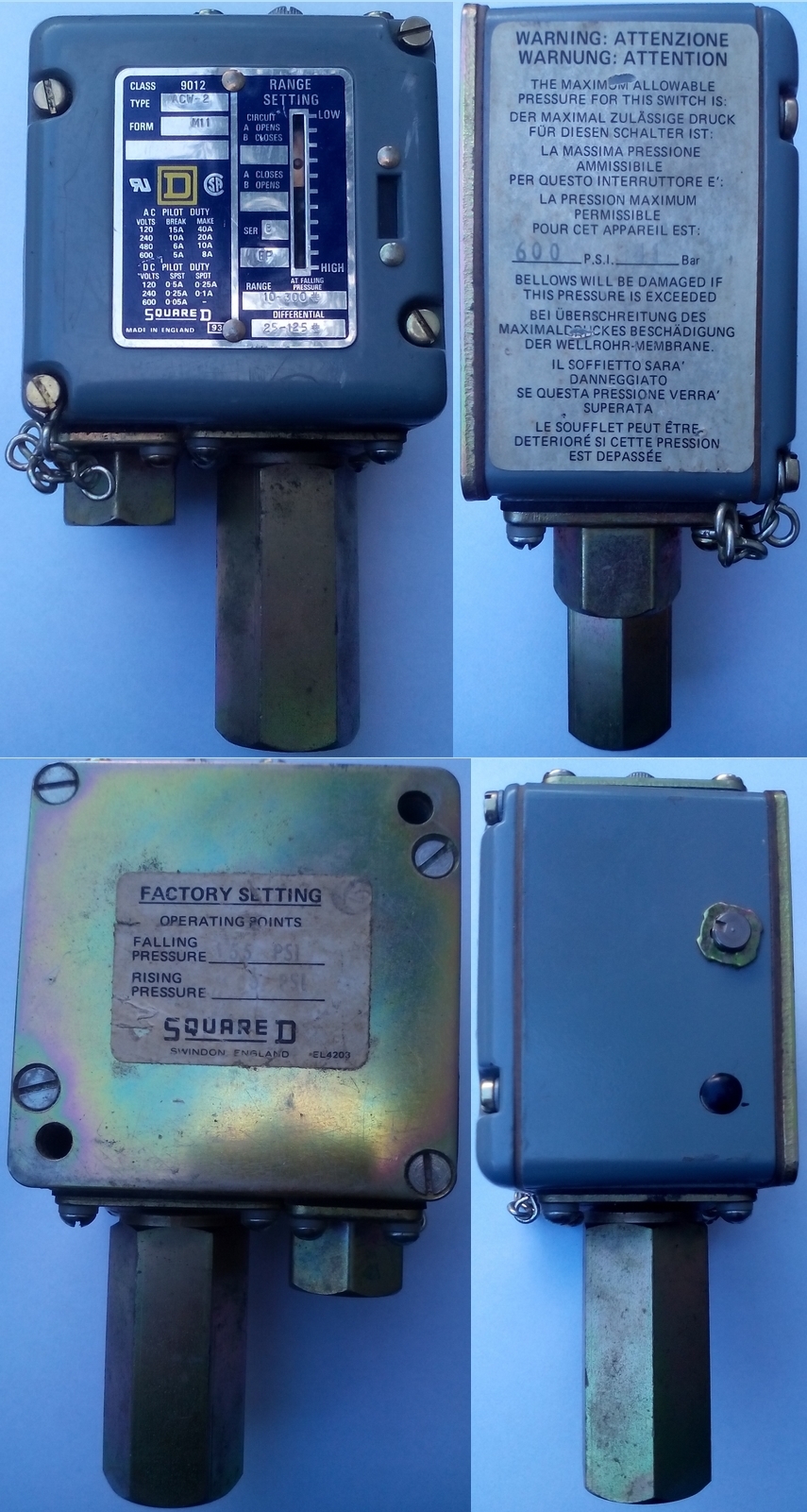

Промышленное реле давления Square D 9012 ACW-2 M11.
Скачать техническое описание реле Square D 9012 ACW-2 M11.
Вес Square D 9012ACW2M11: 1,497 кг
Class 9012
INDUSTRIAL PRESSURE SWITCHES
Type ACW
Bellows actuated pressure switches
For use on Air, Oil, Water, other liquids and Gases. Ingress Protection IP65 (IEC 144)
Single pole – double throw contacts (1NO+1NC)
| Range setting
Switch can be adjusted to operate on Falling pressure within this range |
Adjustable Differential
Add to range setting to obtain operating point on Rising pressure |
Maximum allowable pressure | Order Class 9012Type |
|||
| Bars | PSI | Bars | PSI | Bars | PSI | |
| 0,7 – 20 | 10 – 300 | 1,7 – 8,6 | 25 – 125 | 41 | 600 | ACW-2 |
Connection data
Pressure connection: G1⁄4N to BS2779
Conduit (Electrical) entry: Form M11 (standard), 20mm Iso metric
Industrial Pressure Switch Square D 9012 ACW-2 M11
